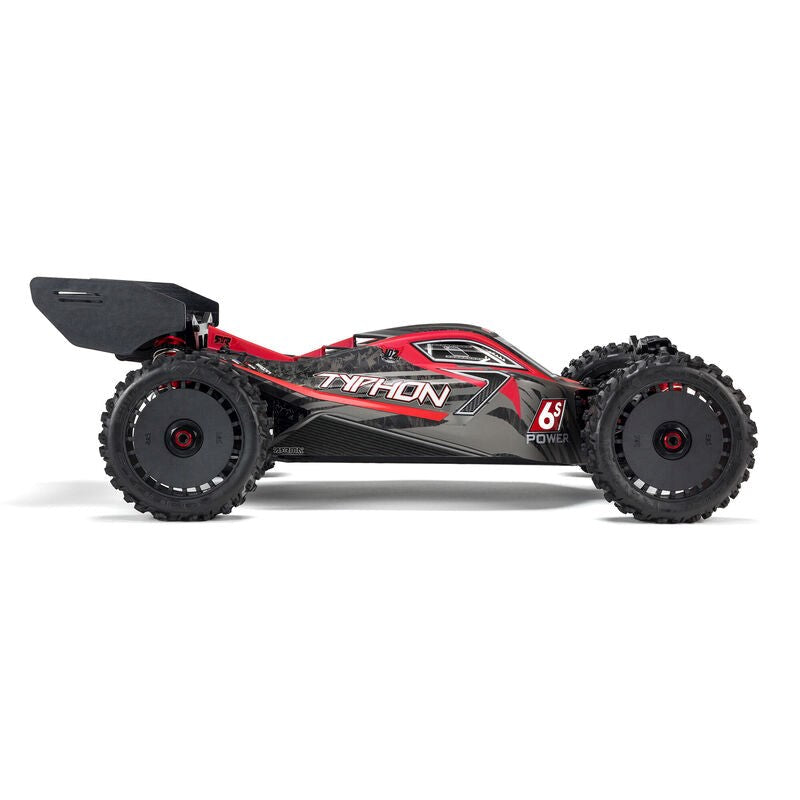

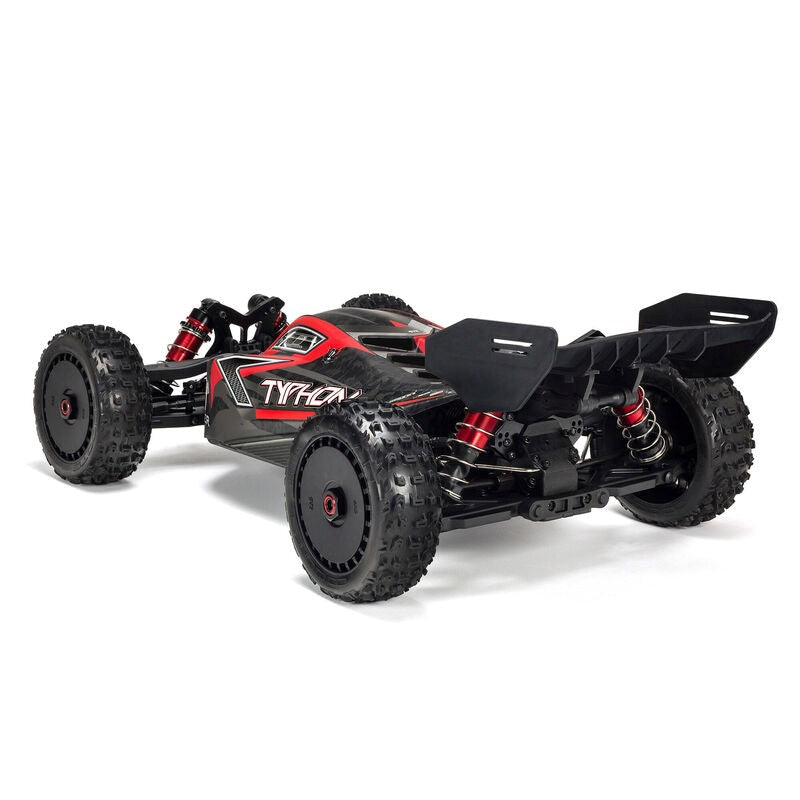

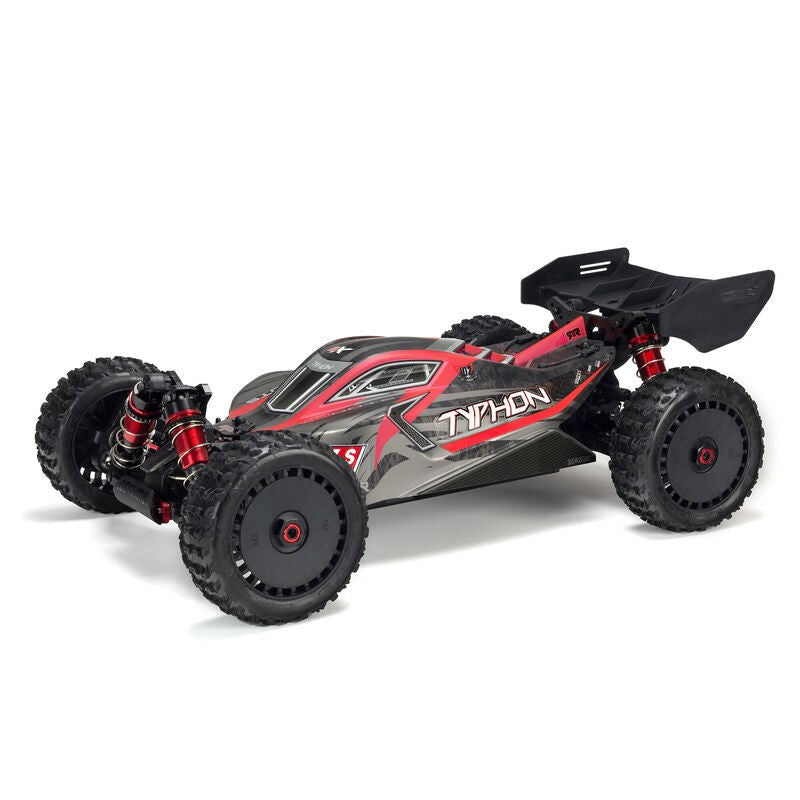

Arrma 8606V5 TYPHON 6S 4WD BLX 1/8 Buggy RTR Black

Designed fast and designed tough, the ARRMA? TYPHON? 6S BLX 4WD RTR Speed Buggy is now equipped to deliver even bigger and better 1/8 scale bashing thrills ? with a Spektrum? SLT3? radio, dual protocol receiver, Smart ESC, stronger servo and more.
Introduction
Experience a thrilling new level of bashing performance with the 1/8 scale, ready-to-run ARRMA? TYPHON? 6S BLX 4WD Speed Buggy. Designed fast, designed tough, and now outfitted with a versatile Spektrum? 3-channel radio system and Firma? brushless electronics, it's all set for fast action on all terrain, in all conditions.
Key Features:
Ready-to-run
Spektrum? SLT3? 2.4GHz 3-Channel Radio
Spektrum? SR315 Dual Protocol 3-Channel Receiver
Spektrum? S652 Digital Servo
Spektrum? Firma? 150A Smart ESC
Spektrum? Firma? 4074 2050Kv Brushless Motor
EXB compatible front brace
Stronger chassis design
Large volume waterproof* receiver box
+1mm wheel hexes
Anodized aluminum chassis
Strong composite chassis side pods
Strong front and rear composite chassis brace
High-speed low downforce wing and strong mounts
Oil-filled adjustable shocks
Aluminum shock caps and protectors
Black-anodized aluminum front and rear shock towers
Durable steel driveshafts throughout
Heavy-duty drivetrain
All-metal diff outdrives and gearbox internals
Never-loose red aluminum servo saver
Never-pop ball ends
4-Bolt center diff removal
Easy-access sliding motor mount for quick motor removal
Super-durable wheel hubs for increased strength
Low drag wheels
Multi-terrain dBoots? KATAR? tires
Forged composite style matte paint scheme
IC5? connectors (EC5? compatible)
2-year limited warranty (see manual for details)
What's In The Box?
ARRMA? TYPHON? 6S BLX 1/8 Speed Buggy 4WD RTR
Spektrum? Firma? 150A Smart 4S/6S ESC (installed)
Spektrum ? Firma ? 4074 2050Kv Brushless Motor with ARRMA? Heatsink (installed)
Spektrum ? S652 Metal-Geared Digital Servo (installed)
Spektrum ? SR315 3-Channel Dual Protocol Receiver (installed)
Spektrum ? SLT3? 2.4GHz 3-Channel Radio
Product Manual
Required for Operation (Not Included)
4S or 6S LiPo Battery
LiPo Compatible Charger
LiPo Charging Bag
(4) AA Batteries
Overview
ARRMA? engineers have updated the TYPHON? 6S BLX 4WD Speed Buggy with a brushless power system featuring the Spektrum? Firma? 150A Smart ESC and Firma? 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA? also includes a new, steel gear Spektrum? S652 Digital Servo ? which is 32% stronger and 5% faster than the previous version's ADS-15M servo.
The ready-to-run package now also includes a 3-channel Spektrum? SLT3? radio and Spektrum? SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3? is compatible with Tactic? SLT? receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.
Because the SR315 receiver can use SLT? and DSMR? protocols, you can easily upgrade to a Spektrum? DSMR? transmitter later ? then, download the free Spektrum? Dashboard? app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma? electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.
The TYPHON? 6S BLX 4WD Speed Buggy blasts over dirt, asphalt and grass, with adjustable oil-filled shocks soaking up the bumps. The shocks are mounted on black-anodized aluminum towers and include aluminum shock caps and protectors to maintain their super-smooth damping.
For the durability needed to support intense brushless performance, ARRMA? uses a strengthened, anodized aluminum chassis as its foundation. Front and rear composite chassis braces and composite chassis side pods add more toughness. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, all contribute to a reliable, heavy-duty drivetrain that holds up to extreme bashing. A "never loose" aluminum steering servo saver and "never pop" ball ends supply more precision, reliability and confidence.
ARRMA? holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount gives you quick, hassle-free access to the motor. The center diff is easy to reach and can be removed by taking out just four bolts.
The low-drag buggy wheels, now with +1mm hexes, arrive outfitted with super-aggressive, multi-surface dBoots? KATAR? tires. A low-drag wing helps keep the vehicle grounded. Both contribute to confident control and responsive handling at thrilling high speeds. Topping it all off is a sleek buggy body with streamlined good looks, featuring a matte black and red paint scheme with forged composite detail.
Technical Specifications:
Approximate Assembly Time
No assembly required
Ball Bearings
Full set
Battery
Sold Separately
Body
Painted, decaled and trimmed
Brakes
User programmable
Charger
Sold Separately
Chassis
0.12" (3mm) 6061-T6 aluminum
Completion Level
Ready-To-Run
Differential
Three, gear type
Drivetrain
4WD
Drive Type
Forward/Brake/Reverse
Final Drive Ratio
10.31
Front Shock Spring Rate
75.5gf/mm
Front Track
12.2" (310mm)
Power Type
Electric
Gear Pitch
1.0MOD
Internal Gear Ratio
3.3
Motor Size
4074
Motor Type
Brushless - Sensorless
Pinion
16T
Product Height
7.48" (190 mm)
Product Length
20.08" (510 mm)
Product Weight
7.52lbs (3.42kg)
Product Width
12.22" (310 mm)
Radio
Included
Rear Shock Spring Rate
56.6gf/mm
Rear Track
12.2" (310mm)
Scale
1/8
Servos
Included
Shock Type
Aluminum body oil-filled adjustable
Speed Control
Included
Spur Gear
50T
Suspension
Independent
Tire Tread
dBoots KATAR B
Tire Type
Multi-surface
Vehicle Type
Buggy
Water-Resistant
Yes
Wheelbase
12.91" (328mm)
Wheel Hex Size
17mm
Wheel Type
1/8 scale Buggy
Wheel Width
1.7" (44mm)
