E-flite EFLM4025A Power 25 Brushless Outrunner Motor 870kV w/3.5mm Gold Connectors

E-flite EFLM4025A Power 25 Brushless Outrunner Motor, 870kV w/3.5mm Gold Connectors

What's Included

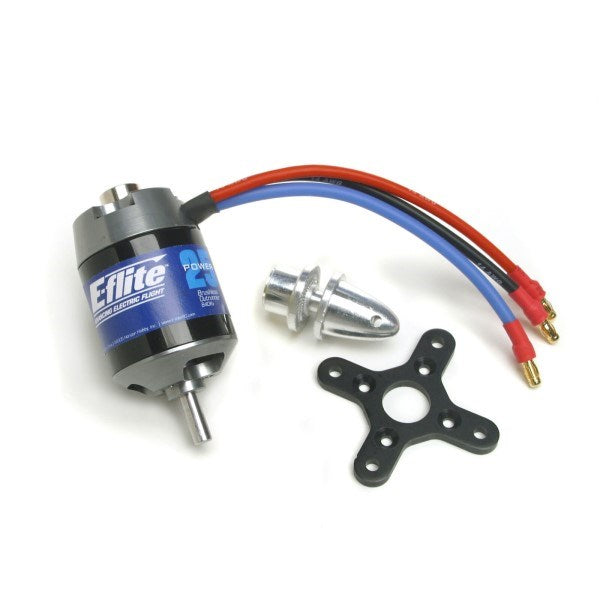

- Power 25 Brushless Outrunner Motor, 870kV w/3.5mm Gold Connectors (Installed)

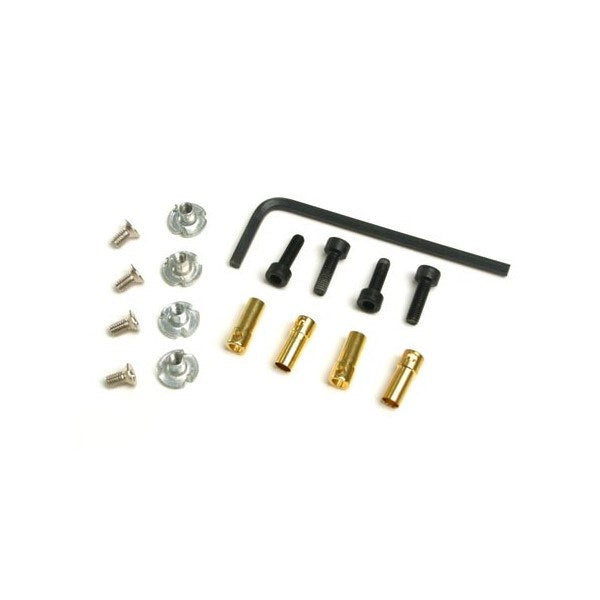

- Motor Mount and Hardware w/Hex Key
- 4 x Female 3.5mm Gold Connectors

Needed To Complete
- 40–45A Brushless ESC
- 3S–4S LiPo or 10 to 14-cell NiMH/NiCd
- 11x8 to 14x7 Prop

Overview
The Power 25 is designed to deliver clean and quiet power for 25-size glow engine for sport and scale airplanes weighing 3 to 5.5 pounds (1.4 to 2.5 kilograms), 15-size 3D airplanes up to 3.5 pounds (1.6 kilograms), or models requiring up to 600 watts of power. It's an especially good match for 4- to 5-pound scale airplanes on the market and models such as the Sig Kadet LT-25, Sig Frazer, Lanier Extra 3.25, Global Tequila Sunrise 25 and Great Planes Taylorcraft 20.

Key Features
- Equivalent to a 25-size glow engine for sport and scale airplanes weighing 3–5.5 lb (1.4–2.5 kg)
- Ideal for 15-size 3D airplanes up to 3.5 pounds (1.6 kilograms)
- Ideal for models requiring up to 600 watts of power
- High-torque, direct-drive alternative to inrunner brushless motors
- Includes mount, prop adapter and mounting hardware
- External radial rotor design- 6mm shaft can easily be reversed for alternative motor installations
- Slotted 14-pole outrunner design
- High-quality construction with ball bearings and hardened steel shaft
- Quite, lightweight operation

Specifications
Application: Aircraft
Bushing Or Bearing: Bearing
Connector Type: 3.5mm Bullet
Idle Current (Io): 2.40A @ 10V
Input Voltage: 11.11 - 16.8V
Maximum Burst Current: 44A
Maximum Continuous Current: 32A
Motor Design: Outrunner
Motor Type: Brushless
Outer Diameter: 1.4" (36mm)
Product Length: 2.1" (53mm)
Product Weight: 0.41lbs (0.19kg)
Recommended Prop Range: 11x8 to 14x7
Resistance: 03 ohms
RPM/Volt (kV): 870
Shaft Diameter: 5mm (.20 in)
Speed Control: Sold Separately
Voltage: 11.4 - 16.8V
Wire Gauge: 14 AWG
