Hitec HS-5125MG Digital Wing Servo

At 10mm thick, the Hitec HS-5125MG servo is a great choice for a super thin wing servo. Featuring a digital programmable circuit providing instant torque and holding power, Hitec?s HS-5125MG also uses our reliable M/P gear and metal gear train technology for super durability.
Key Features:
Super Thin Programmable Digital Wing Servo
Strong Metal Gears
Dual Ball Bearings
Standard Programmable Digital Circuit for Greater Holding Power
10mm Design Fits Perfectly in Slim Aircraft and Glider Wings
Programmable Functions:
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Data Save / Load
Program Reset
Accessories:
Nylon Gear Set | Link |
Metal / Plastic 1st Gear Set | Link |
Plastic Case Set | Link |
Applicable Horns
Technical Specifications:
Performance Specifications:
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60?) 0.17 ~ 0.13
Maximum Torque Range oz. / in. 42 ~ 49
Maximum Torque Range kg. / cm. 3.0 ~ 3.5
Current Draw at Idle 3 mA
No Load Operating Current Draw 230 mA
Stall Current Draw 1,200 mA
Dead Band Width 1 ?s
Physical Specifications:

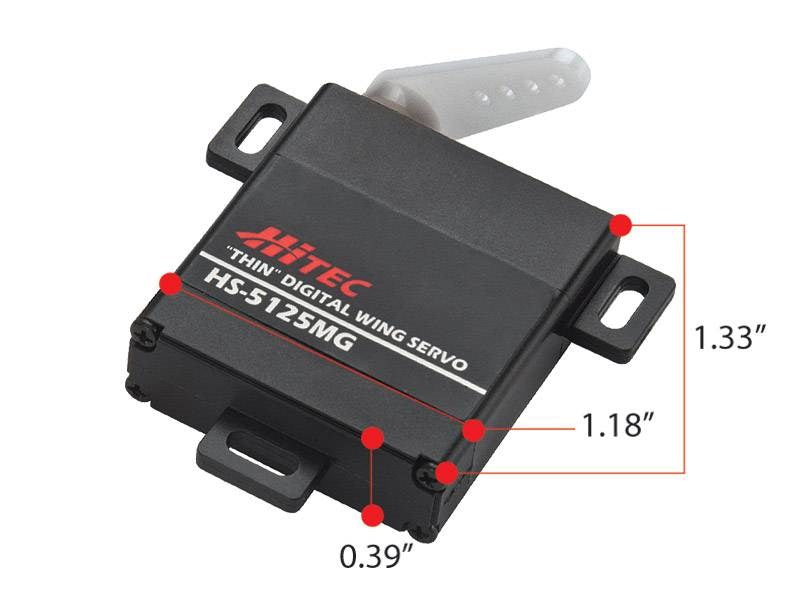

Dimensions (Inches) 1.18 x 0.39 x 1.33
Dimensions (Metric) 30.0 x 10.0 x 34.0
Weight (Ounces) 0.84
Weight (Gram) 24.0
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type Dual Ball Bearing
Output Shaft (type / ?mm) Micro 23
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
