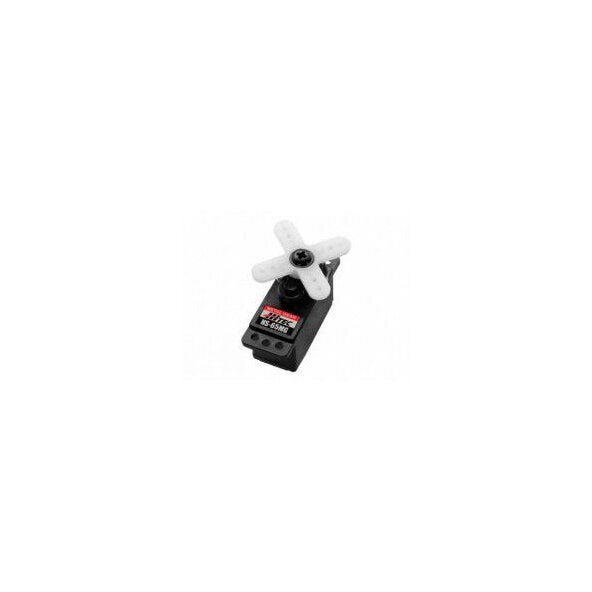

Hitec HS-65MG Metal Gear Mighty Feather

Considered one of the most powerful servos in the micro class, the HS-65 is offered with a choice of ?shock resistant? Metal or ?zero wear? Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars. Key Features: Top Selling Metal Gear Feather Servo High Performance Three-Pole Motor Rugged Metal Gear for Added Durability Ball Bearing-Supported Output Shaft Technical Specifications: Performance Specifications Operating Voltage Range (Volts DC) 4.8V ~ 6.0V Speed (Second @ 60?) 0.14 ~ 0.11 Maximum Torque Range oz. / in. 25 ~ 31 Maximum Torque Range kg. / cm. 1.8 ~ 2.2 Current Draw at Idle 8 mAh No Load Operating Current Draw 220 mAh Stall Current Draw 1200 mAh Dead Band Width 5 ?s Physical Specifications Dimensions (Inches) 0.92 x 0.45 x 0.94 Dimensions (Metric) 23.6 x 11.6 x 24.0 Weight (Ounces) 0.42 Weight (Gram) 11.9 Circuit Type HT7003 Analog SMT Motor Type 3 Pole Metal Brush Neodymium Gear Material Metal Bearing Type Top Ball Bearing Output Shaft (type / ?mm) Micro 23 Case Material Plastic Dust / Water Resistance N / A Connector Gauge (AWG) / Strand Count 28 / 20 Radio Control Applications Parkflyer < 42 oz. Sport Plane 36 - 41 oz. Sailplane < 2 meter / DLG 3D Performance Foamies Scale N / A Electric Helicopter 400 - 500mm Gas Helicopter 30 - 39 Class On Road N / A Monster Truck N / A Buggies N / A Truggies N / A Short Course / Truck 1/8th Crawlers N / A Sail Boat N / A Power Boat 1/8th
