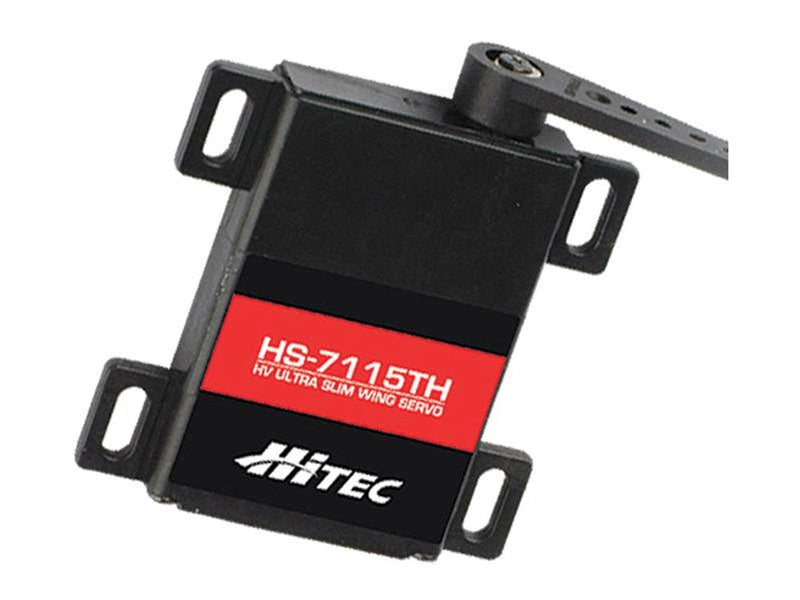

Hitec HS-7115TH HV Slim Wing Servo 6.0V 3.2kg/cm 0.12sec 7.4V 3.9kgcm 0.10sec 26x8x38mm 20g

You can never be too rich or too thin! That's our philosophy with our new HS-7115TH Slim Wing servo: rich engineering in a thin design! The HS-7115TH will fulfill every pilot's dream when it comes to flying slim-wing aircraft. With its efficient, powerful three pole, metal-brushed motor and mighty titanium gear train, this servo brings the ultimate in high performance to your sailplanes, pylon racers and smaller scale models. The extremely thin, 8mm case with included mounting bracket allows it to fit into the tightest wings and most compact spaces. Constructed with dual ball bearings, the high voltage HS-7115TH provides an impressive 50 oz-in of torque at 7.4 volts.
Key Features:
Slim 8mm Design Fits in the Thinnest Wings
Strong Three-Pole Ferrite Motor
Durable Titanium Gears
Dual Ball Bearing
7.4v 2-Cell LiPo Capability
G2 Fully Programmable Digital Circuitry
Programmable Functions:
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Overload Protection
Resolution
Data Save / Load
Program Reset
Technical Specifications:
Performance Specifications
Operating Voltage Range (Volts DC)
6.0V ~ 7.4V
Speed (Second @ 60?)
0.12 ~ 0.10
Maximum Torque Range oz. / in.
44?~?54
Maximum Torque Range kg. / cm.
3.2?~?3.9
Current Draw at Idle
10?mA
No Load Operating Current Draw
130?mA
Stall Current Draw
1,500 mA
Dead Band Width
1??s
Physical Specifications

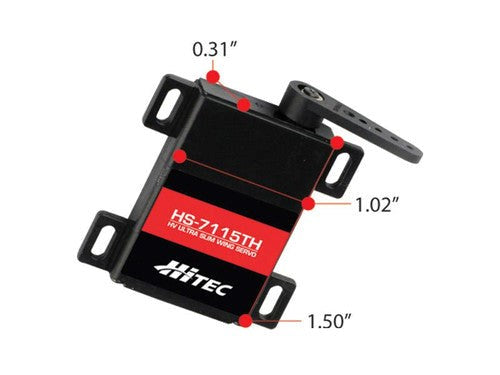

Dimensions (Inches)
1.02 x 0.31 x 1.50
Dimensions (Metric)
26.0 x 8.0 x 38.0
Weight (Ounces)
0.71
Weight (Gram)
20.0
Circuit Type
G2 Programable Digital
Motor Type
3 Pole Metal Brush Ferrite
Gear Material
Titanium
Bearing Type
Dual?Ball Bearing
Output Shaft (type / ?mm)
Feather 15
Case Material
Plastic
Dust / Water Resistance
N / A
Connector Gauge (AWG) / Strand Count
22 / 40
Radio Control Applications
Parkflyer
N / A
Sport Plane
42 - 50 oz.
Sailplane
2 Meter and Up
3D Performance
42 - 50 oz.
Scale
N / A
Electric Helicopter
N / A
Gas Helicopter
N / A
On Road
N / A
Monster Truck
N / A
Buggies
N / A
Truggies
N / A
Short Course / Truck
N / A
Crawlers
N / A
Sail Boat
N / A
Power Boat
N / A
