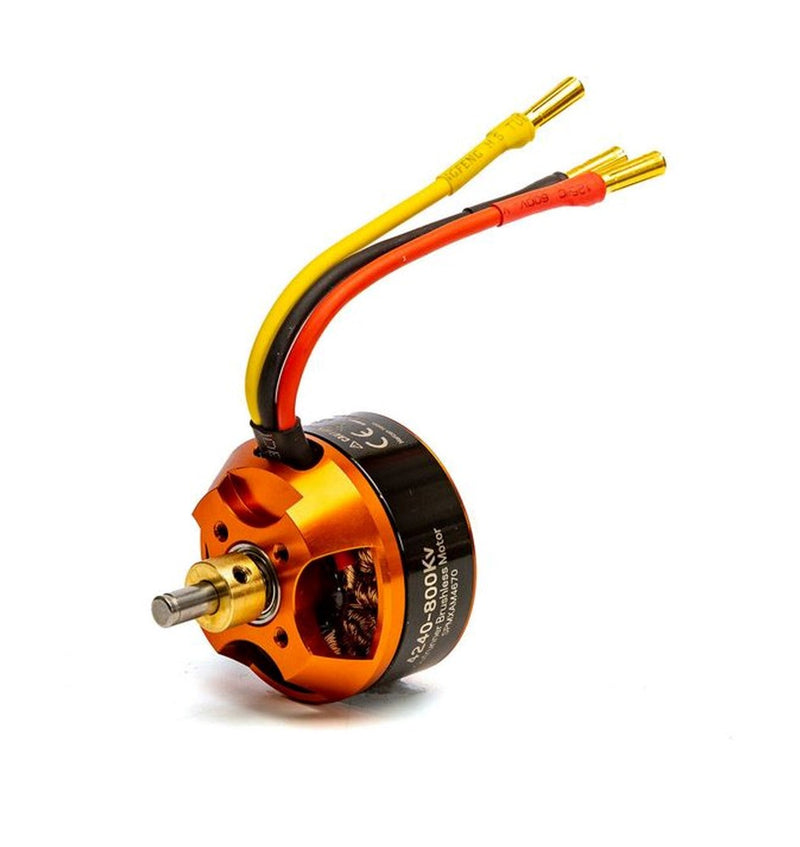

Spektrum SPMXAM4670 Avian 4240-800kV Outrunner Brushless Motor
by Spektrum
SKU SPMXAM4670
Original price
$157.95
-
Original price
$157.95
Original price
$157.95
$157.95
-
$157.95
Current price
$157.95
Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!
Key Benefits
Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.
Key Features:
Lightweight design
Powerful and durable Rare-Earth Neodymium magnets
14-pole stator for smooth and precise propulsion

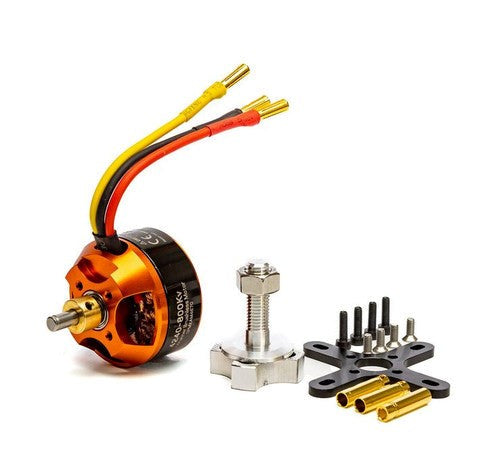

Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
Perfect match for the Spektrum Smart Avian 45 amp ESC
Perfect electric conversion upgrade for .28 size glow combustion power system
Important Recommendations:
Recommended Voltage Range ? 11.1-18.5V / 3-5S LiPo
Recommended Propeller Range ? 10x5 to 13x8 Electric Propeller
Recommended Model Flying weight ? 3D 1769g (3.9 lbs) - Sport 3583g (7.9 lbs)
Max Wattage ? 740w
Technical Specifications:
Recommended Speed Control
Spektrum Smart Avian 45 amp ESC
RPM/Volt (Kv)
800Kv
Connector Type
3.5mm Bullet

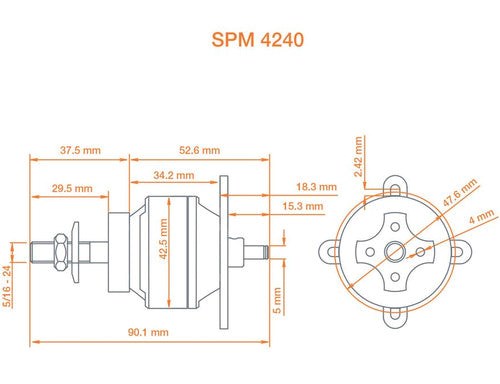

Motor Size
4240
Product Length
1.59" (40 mm)
Outer Diameter
1.67" (42 mm)
Maximum Burst Current
740W
Maximum Continuous Current
592W
Motor Type
Brushless
Voltage
11.1-18.5v (3-5S LiPo)
Application
Sport airplanes up to 7.9lbs (3583g) and 3D airplanes up to 3.9lbs (1769g)
Number of Poles
14
Product Weight
4.4oz (125g)
Recommended Prop Range
10x5 to 13x8 Electric Prop
Shaft Diameter
0.19" (5 mm)
