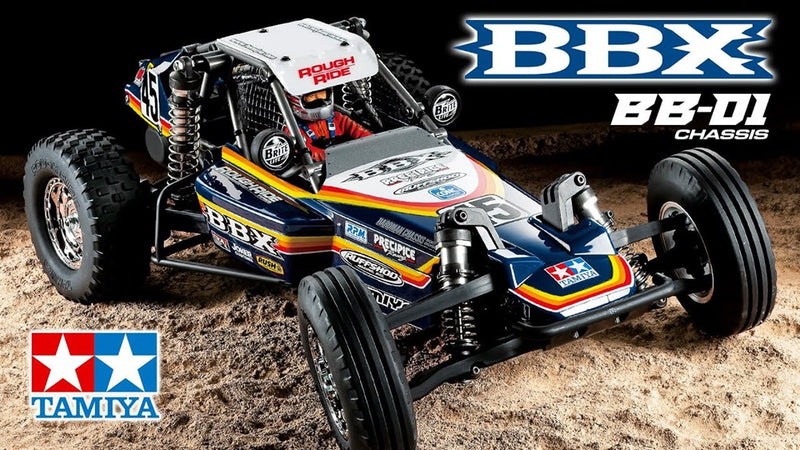

Tamiya 58719 1/10 BBX (EXCL ESC) BB-01

Tamiya BBX 2WD Off-Road Buggy Kit
BBX 2WD Off-Road Buggy Kit. The RBX BB-01 scale Dune buggy was inspired by Tamiya's back catalog of iconic 2WD off-road buggies. This high performance off-road machine features a redesigned chassis, reminiscent of 1980?s sand rail dune buggies, is a hybrid monocoque-roll cage, and employs rear trailing arm suspension inspired by full-size UTV?s. All this is wrapped in a 0.7mm thick polycarbonate body designed and crafted by the renowned Japanese artist Atsushi Arino, features a classic 1980?s-inspired livery, complemented by retro wheels and tires for a nostalgic touch.
BBrilliant
This R/C model assembly kit is inspired by single-seater racing buggies popular in America. The slim chassis utilizes a lengthwise battery pack and rear-mounted, transverse motor, and ensures optimum weight balance and precise rigidity. The 4-wheel independent suspension uses front double wishbone and rear trailing arm setups to allow dynamic off-road performance. It employs safety nets, a roll cage equipped with light pods, six-piece body cowling featuring a long nose, and aluminum dampers.
The BB-01 Chassis
The BB-01 is a rear-wheel drive buggy chassis which features a hybrid lower deck-roll cage and suspension structure for a super-realistic look. Lengthwise battery pack and rear-mounted motor give the rear wheels plenty of traction, while the sealed gearbox has a built-in ball differential. The suspension utilizes an A-shaped arm front double wishbone setup featuring a skid angle of 25 degrees, and rear trailing arms for alignment adjustment, plus high-spec, high-quality aluminum aeration oil dampers for all four wheels. Tires are front rib pattern tread for directional stability and rear square spike for high grip, and are paired with front and rear metal-plated, hex-hub wheels. Access the motor easily under the liftable rear roll cage section.
Key Features:
Full ball bearings and universal drive shafts
TA06 rear ball differential for consistent traction
Four-wheel double wishbone suspension system
One-piece monocoque frame and roll cage
Metal-plated bead lock type wheels are paired with large-diameter tires
Removable rear cage for ease of maintenance
What's In The Box?
(1) Tamiya BBX 2WD Off-Road Buggy Kit (BB-01)
Instruction Manual
Required for Operation (Not Included)
ESC and Motor
(1) 2-channel Transmitter/Radio
(1) Low Profile Steering Servo
(1) 2S (7.2V-7.4V) Battery
(1) Compatible charger
Polycarbonate paint for body
Take a look at this classy new buggy from a different angle!
This image shows the model without its body parts, giving a xloser look at the realistic roll cage chassis.
The steering uses a 3-piece tie-rod setup with hi-torque servo saver. Note that a low-profile servo is required.
Front A-arms have a skid angle of 25 degrees, and are paired with aluminum oil dampers.
Plated wheels have a classic design, and are paired with ribbed front tires
Rear trailing arm suspension allows adjustment of alignment. Universal drive shafts are standard.
Rear wheels utilize square spike tires with a realistic high profile.
The battery pack is positioned in the chassis center. Remove the nose cowl and a stopper pin to access it.
Remove screws to let the rear roll cage section flip up and give access to the motor.
Technical Specifications:
Scale: 1/10
Length: 16.2in (414mm)
Width: 9.1in (233mm)
Height: 5.3in (136mm)
Wheelbase: 11.1in (283mm)
Drive: 2WD
Power Source: Electric
Assembly Level: Kit
