Tamiya 56325 RC Kit: 1/14 MAN TGX 26.540 6x4 XLX (Unpainted)

Tamiya 56325 RC Kit: 1/14 MAN TGX 26.540 6x4 XLX (Unpainted)

NOTE: This is a kit and requires assembly. Some parts are sold separately- see list below.

WHAT'S INCLUDED
- Unassembled 1/14 MAN TGX 26.540 6x4 XLX (Unpainted) kit
- Tires, wheels, decal sheet, 3-speed transmission, instructions and coupler unit for trailer (trailer sold separately)
- RS540 brushed motor and ESC

REQUIRED ITEMS (SOLD SEPARATELY)
- 4-Channel radio system (Futaba 4YWD recommended)
- 2 Standard servos
- Standard steering servo
- 7.2V NiMH battery pack and suitable charger
- 8 x R6/AA/UM3 batteries for transmitter
- Tools for assembly
- Polycarbonate body paint (Tamiya PS spray recommended)
- Optional: MFC-01 Multi-Function Control Unit

DESCRIPTION
This is a MAN Truck!

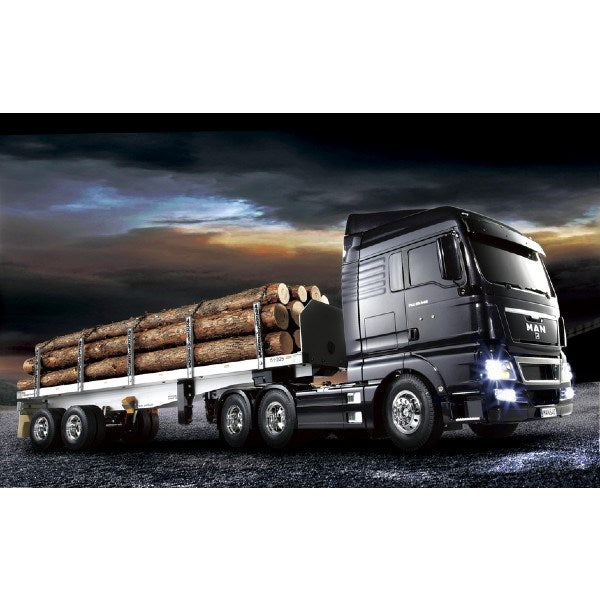

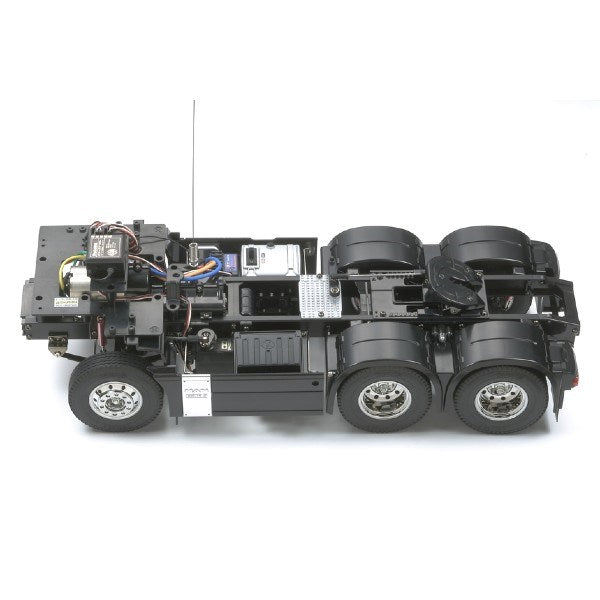

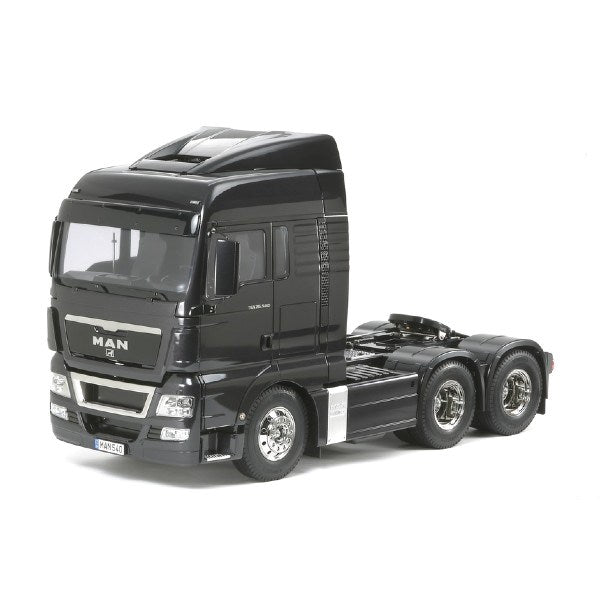

Also known as transporters that are used by F1 teams today, MAN Company's tractor truck the TGX 26.540 6x4 XLX was awarded “The 2008 Truck of the Year.” This award winning truck comes reproduced as a 1/14 scale electric RC model. The model features a ladder frame chassis with aluminum channels, suspension with metal leaf springs and friction dampers, and rear axles equipped with differentials. Providing this truck with a realistic scale finish are parts which feature two kinds of metal-plating and metal transfers to beautifully depict details such as the front grille's emblem. Furthermore, the chassis features a 3-speed transmission which allows gear shifting while driving via transmitter, with the sound and lighting actions reproduced by the separately available Multi Function Control (MFC-01) unit.

Realistic Lights, Sounds, and Vibration (Sold Separately)
Multi-Function Control Unit (MFC-01) offers light, sound, and vibration operation to accompany your RC truck experience. Engine sounds have been digitally recorded from the actual truck, and together with air horn, gear shifting, and many other realistic sounds, lets you feel like you are driving the real thing. Headlights, brake lights, and turn signal operations are also available at your fingertips.

5 Types of Separately Available Semi-Trailers (Sold Separately)
Five types of trailer including semi-trailer, tank-trailer, and pole-trailer, are currently available to choose from. Attach any one of them to the MAN TGX 26.540 6x4 XLX to create an exciting combination that is over 1 meter long.

SPECIFICATIONS
Length: 526mm
Width: 193mm
Height: 301mm
Weight (Without Options): 3.8kg approx.
Wheelbase: 237 + 103mm
Tread: 156mm (front), 138mm (rear, double tire)
Chassis: Aluminum and polycarbonate resin ladder frame
Suspension: Front/rear leaf springs
Caster Angle (Front/Rear): 0 deg.
Camber Angle (Front/Rear): 0 deg.
Toe Angle (Front/Rear): 0 deg.
Dampers: Aluminum dummy dampers (front and rear)
Drivetrain: Rear double axle drive
Transmission: 3-Gear transmission (gear shifting operated via transmitter)
Gear Ratio: (1st) 32.49:1, (2nd) 17.76:1, (3rd) 10.66:1
Diff. Gear: 3-Bevel diff.
Motor: Type RS540
Tire Width: 22mm (front/rear)
Tire Diameter: 83mm (front/rear)
