Tamiya 58694 RC Kit: 1/10 4WD Toyota GR 86 (TT-02)

Tamiya 58694 RC Kit: 1/10 4WD Toyota GR 86 (TT-02)

NOTE: This is a kit and requires assembly. Some parts are sold separately- see list below.

WHAT'S INCLUDED
- Unassembled 1/10 4WD Toyota GR 86 (TT-02) kit
- Body decals
- 540-Size brushed motor and ESC

REQUIRED ITEMS (SOLD SEPARATELY)
- 2-Channel radio system
- Standard steering servo
- 7.2V NiMH battery pack and suitable charger
- Polycarbonate body paint (Tamiya PS spray recommended)
- ABS compatible paint (Tamiya TS spray recommended)
- Tools for assembly

DESCRIPTION
A Mouthwatering Prospect
The Toyota GR 86 is a lightweight front-engine, rear-wheel-drive sports car which was announced in April 2021; Powered by a 2.4-liter horizontally opposed four-cylinder DOHC engine capable of 235hp, the GR 86 delivers direct feel and the joy of driving to owners. It is recreated by this RC model assembly kit, with the stylish form expertly recreated by a polycarbonate body.

TT-02: Adaptable, balanced shaft driven 4WD

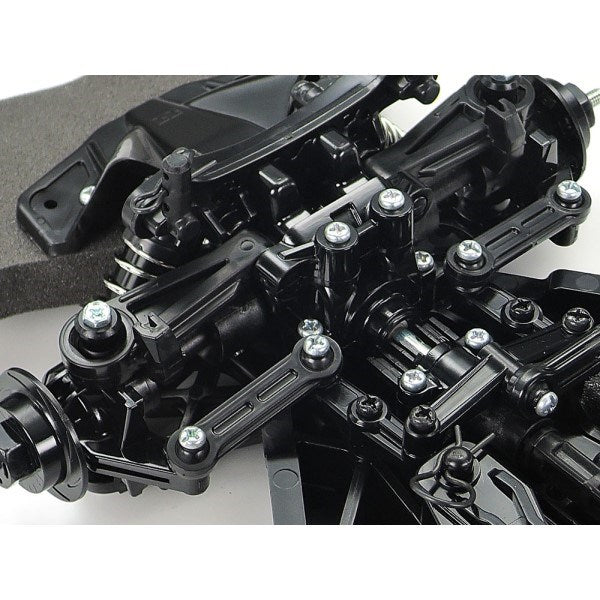

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Black 10-spoke wheels use tread patterned semi-pneumatic tires.

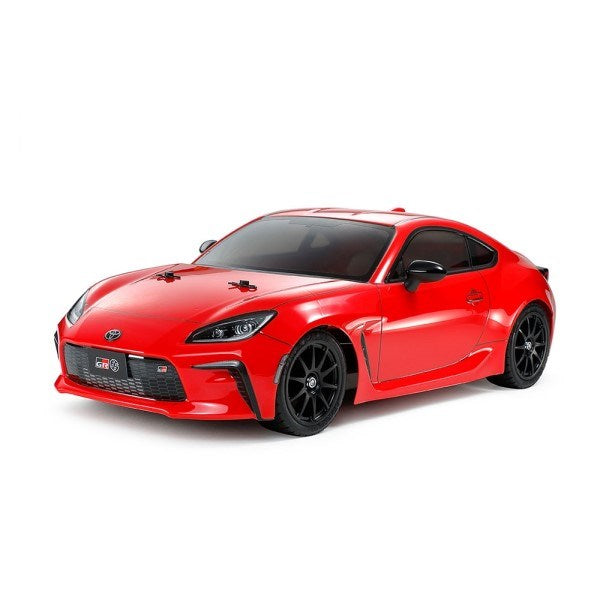

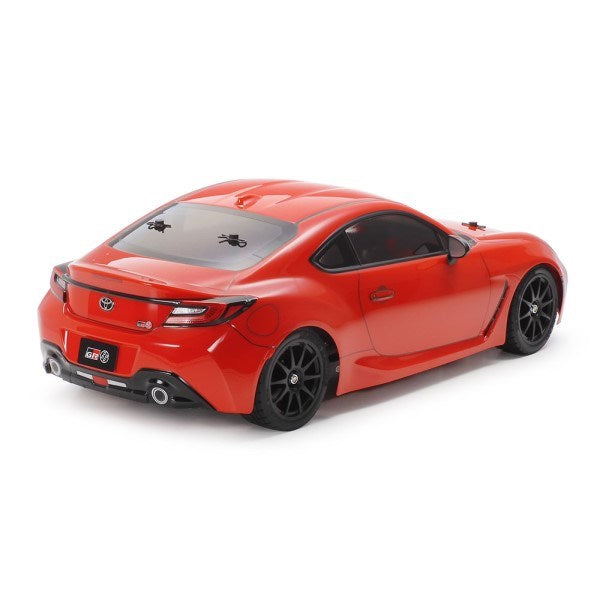

- The Toyota GR 86 is made of polycarbonate with front/rear polycarbonate light cases (NOTE: LED lights are not attachable). Includes black ABS plastic side mirrors.
- Features the shaft-driven 4WD TT-02 chassis which gives high adaptability with various kinds of setups.
- Black 10-spoke one-piece wheels are paired with racing radial tires.

ASSEMBLED DIMENSIONS
Length: 428mm
Width: 188mm
Height: 131mm
Wheelbase: 257mm

SPECIFICATIONS
Adjustable Gear Ratio: Yes
Bearings: Plastic bushings
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS plastic
Chassis Type: TT-02
Construction Type: Assembly kit
Differential Type: Gear
Drive Type: 4WD

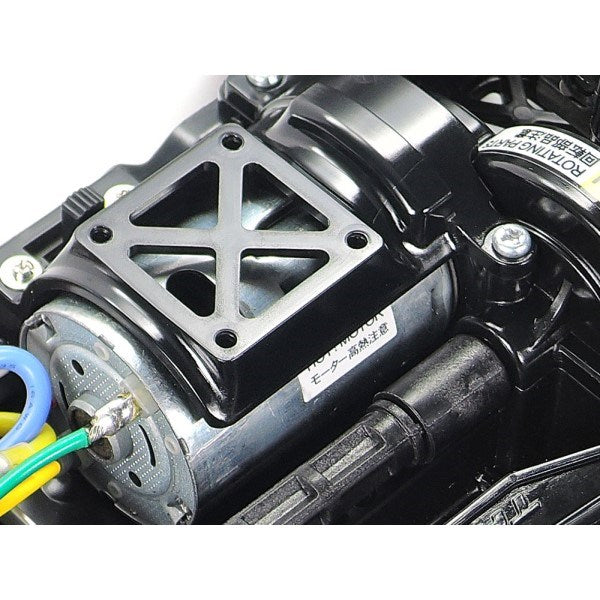

Motor: 540-Size brushed
Scale: 1/10
Shock Damper: Friction type
Suspension: Fully independent double wishbone
Terrain Use: On-road
Tire Width/Diameter (Front and Rear): 27/67mm
Gear Ratio: 8.27:1*

*Nine further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions.
