Tamiya 58701 RC Kit: 1/10 4WD Opel Calibra V6 Cliff (TT-01E)
Tamiya 58701 RC Kit: 1/10 4WD Opel Calibra V6 Cliff (TT-01E)
NOTE: This is a kit and requires assembly. Some parts are sold separately- see list below.
WHAT'S INCLUDED
- Unassembled 1/10 4WD Opel Calibra V6 Cliff (TT-01E) kit
- Body decals
- 540-size brushed motor and ESC
REQUIRED ITEMS (SOLD SEPARATELY)
- 2-Channel radio system
- Standard steering servo
- 7.2V NiMH battery pack and suitable charger
- Polycarbonate paint for the body (Tamiya PS recommended)
- Tools for assembly
A FINE VINTAGE

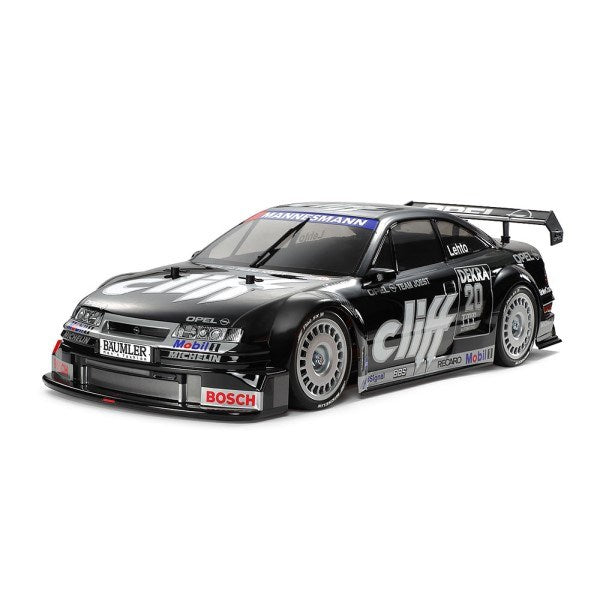

The cars in the 1995 German DTM touring car series were finely honed beasts, battling it out over twenty-four races in six countries. Opel, Mercedes-Benz and Audi cars took part; six Opels from two teams took to the track, including this Calibra V6 clad in a striking black livery bearing the name of title sponsor Cliff, and piloted by JJ Lehto. This RC model assembly kit depicts the car in style, with the two-door coupe body molded in lightweight polycarbonate and stickers included to recreate markings.
EVOLVED CHASSIS

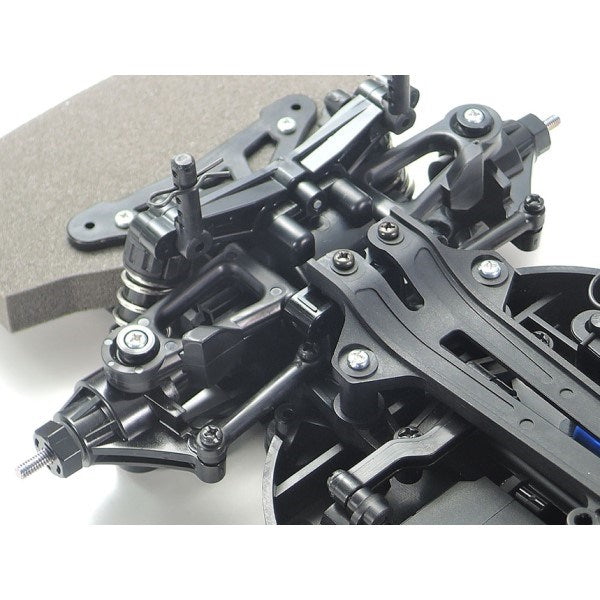

The bathtub frame of the evolved shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for lower center of gravity and optimum balance. Mounted on the bathtub frame is a fiberglass reinforced nylon upper deck and gear covers improving rigidity, as well as a three-piece tie rod providing smooth steering action. The low center of gravity, highly balanced design, 4-wheel double wishbone suspension system, and front and rear differential gears all come together to produce an excellent drive. Silver dish wheels are paired with racing slick tires for the finishing touch, while a host of Hop-Up Option parts are available to soup up the TT-01 Type-E!

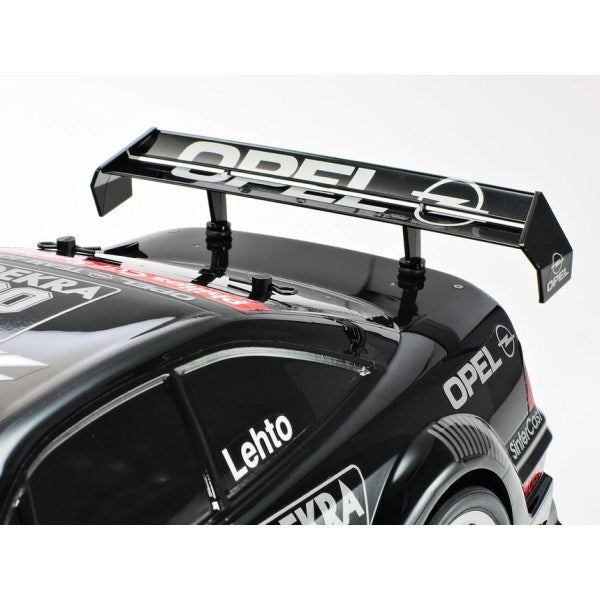

- Lightweight, rigid polycarbonate body (clear) with separate side mirrors and a rear wing.
- The model utilizes the shaft-driven 4WD TT-01 Type-E chassis, which is based around a durable bathtub frame and gives an intuitive, highly controllable driving experience.
- Features 4-wheel double wishbone suspension system.

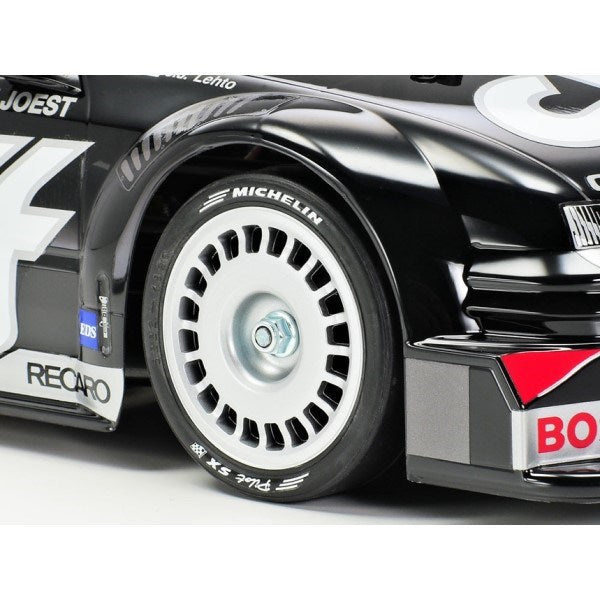

- Silver ABS, dish wheels are paired with racing slick tires.
- Comes with stickers and window masking stickers for use in the paint job process.
SPECIFICATIONS
Scale: 1/10
Length: 448mm
Width: 185mm
Height: 128mm
Wheelbase: 257mm
Tire Width/Diameter (Front and Rear): 27/67mm
Adjustable Gear Ratio: Yes
Gear Ratio: 8.35:1
Bearings: Plastic bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS plastic
Chassis Type: TT-01E
Construction Type: Assembly kit
Differential Type: Gear
Drive Type: 4WD
Electronic Speed Control (ESC): Included
Motor: 540 Brushed type
Shock Damper: Friction type
Suspension: Fully independent double wishbone
Terrain Use: On-road
