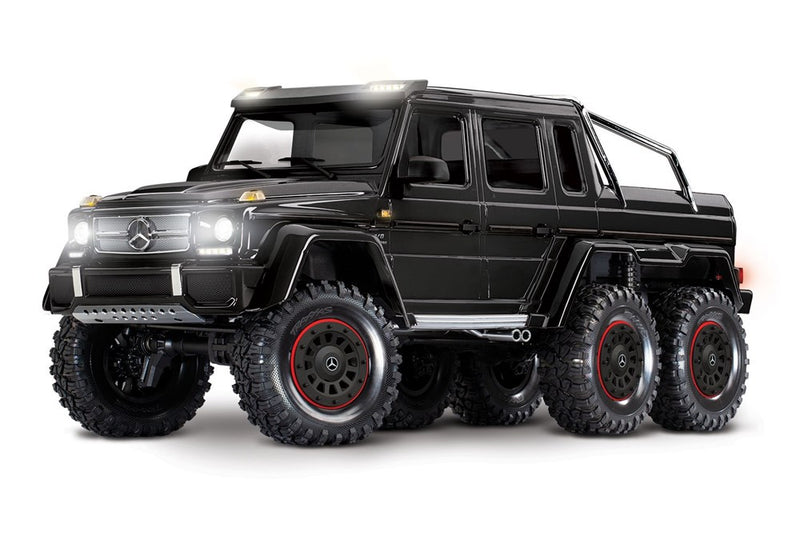

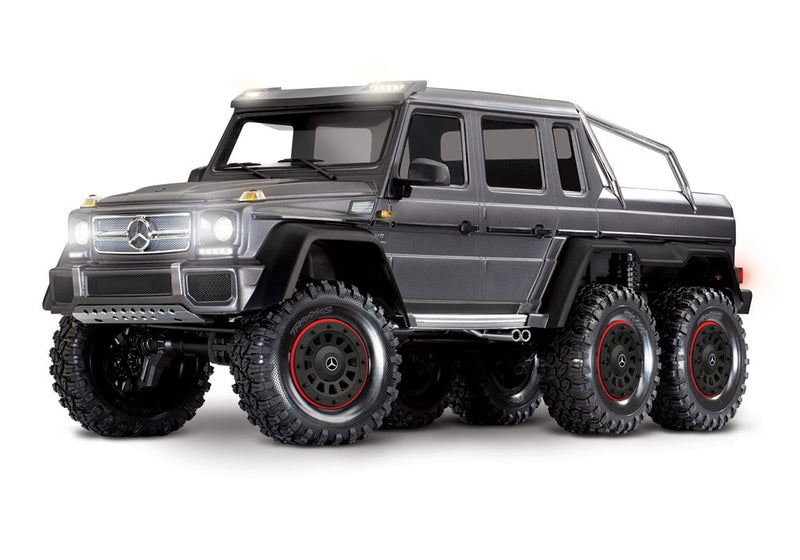

Traxxas 88096-4 - TRX-6 Mercedes-Benz G 63 AMG 6x6
Traxxas 88096-4 - TRX-6 Mercedes-Benz G 63 AMG 6x6
The Mercedes-Benz G 63 AMG 6x6 represents a singular vision to create the boldest and toughest all-terrain vehicle ever. Traxxas captures the spirit and no-compromise approach of the Mercedes-Benz G 63 AMG 6x6 with an officially licensed detailed scale replica built on the proven TRX-6 platform. Six drive wheels, three T-Lock remote-locking differentials, portal axles, high/low transmission, 6 aluminum long-travel shocks, and a stunningly accurate body with brilliant LED lighting make this the most advanced and capable RC crawler ever to hit the trail.
SUPERIOR 6X6 DESIGN

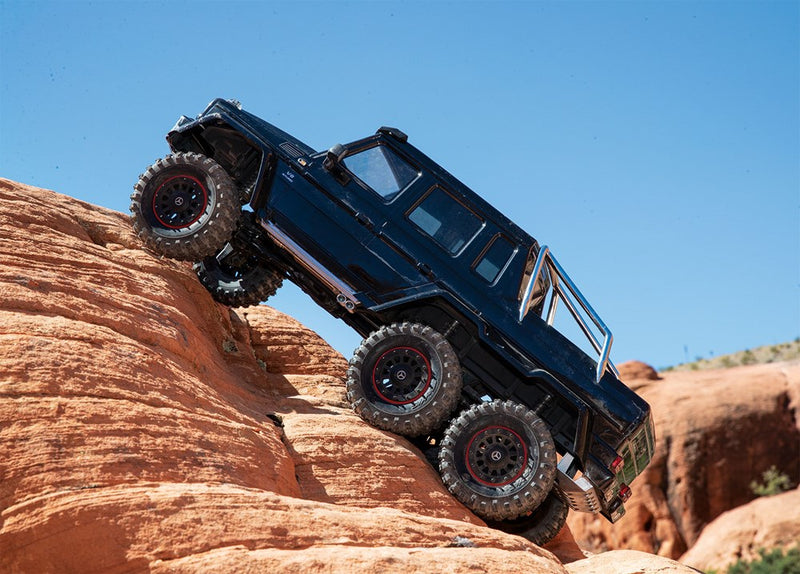

A fully independent intermediate axle puts an extra set of driving wheels where you need them most to power over obstacles that would otherwise be impossible. 6-wheel drive also allows greater traction to attack steeper inclines and more grip over loose and rocky surfaces.
EXCEPTIONAL BODY DETAIL
The TRX-6 Mercedes-Benz G 63 AMG 6x6 faithfully reproduces one of the most exclusive and recognizable all-terrain vehicles ever created. Chrome accents, molded trim, and finely detailed lighting elements highlight the rich metallic paint. Traxxas’ uncompromising attention to detail elevates the TRX-6 to the ultimate expression of beauty and brawn.
FACTORY-EQUIPPED LED LIGHTING
Rugged and fully-waterproof, the preinstalled LED lighting blazes a path through the darkest night. Accurate scale details abound in the finely crafted headlights, taillights, and side marker lights. Even the roof visor is fitted with brilliant LED lighting. A dedicated power supply regulates the voltage for bright, consistent, and efficient lighting.
Batteries & Charger are not included, these are the compatible batteries and chargers:
Compatible Lipo Batteries:
- Traxxas 2820X - 2200mAh 2S 7.4V 2200mAh Lipo w/iD Connector
- Traxxas 2823X - 1400mAh 11.1V 3-Cell 25C LiPo Battery
- Traxxas 2842X 5000mAh 7.4v 2-Cell 25C LiPo Battery
- Traxxas 2843X - 5800mAh 7.4v 2-Cell 25C LiPo Battery
- Traxxas 2844R - 5200mAh 7.4v 2-cell 35C LiPo Battery
- Traxxas 2849X - 4000mah 11.1v 3-Cell 25C LiPO Battery w/ID
- Traxxas 2869X - 7600Mah 7.4V 2-Cell 25C Lipo Battery
- Traxxas 2872X - 5000mAh 11.1V 3-Cell 25C LiPo Battery
- Helios 11.1V 3S 5200mAh LiPo with Traxxas Plug
Compatible Nimh Batteries:
- Traxxas 2923X - Battery, Power Cell, 3000mAh (NiMH, 7-C flat, 8.4V)
- Traxxas 2940X - Battery, Series 3 Power Cell, 3300Mah (Nimh, 7-C Flat, 8.4V)
- Traxxas 2950X - Series 4 NiMH 7-Cell 4200mAh Flat w/iD Conn
- Traxxas 2960X - Series 5 NiMH 7-Cell 5000mAh Battery Flat w/iD Conn
Compatible Chargers:
- Traxxas 2975 - Charger, DC, 4 amp (6 - 7 cell, 7.2 - 8.4 volt, NiMH)
Completer Packs:
- Traxxas 2983 - 8.4v 3000mah (long) Battery/Charger Completer Pack
- Traxxas 2991 - 2 of 2s 7600mah Battery/Charger Completer Pack, Includes Ez Peak Dual Charger X 1 And 2-Cell 7600 Mah Lipo Batteries X 2
- Traxxas 2992 - 2s Battery/Charger Completer Pack (Includes #2970 Id Charger (1), #2843X 5800Mah 7.4V 2-Cell 25C Lipo Battery (1))
- Traxxas 2994 - 3s 4000mah Battery/charger completer pack (includes #2970 iD charger (1), #2849X 4000mAh 11.1v 3-Cell 25C LiPo Battery (1))
NB: Some batteries may require a battery expansion kit to fit properly.
VEHICLE SPECS:
| Length: | 25.61 inches (651 mm) |
|---|---|
| Front Track: | 9.78 inches (249 mm) |
| Rear Track: | 9.78 inches (249 mm) |
| Ground Clearance: | 3.14 inches (80 mm) |
| Weight: | 8.8 pounds (3.99 kg) |
| Height: | 10.78 inches (274 mm) |
| Wheelbase (to intermediate axle): | 12.76 inches (324 mm) |
| Wheelbase (to rear axle): | 17.87 inches (454 mm) |
| Approach Angle: | 60° |
| Departure Angle: | 55° |
| Breakover Angle: | 57° |
| Front Shock Length: | 3.54 inches (90 mm) |
| Rear Shock Length: | 3.54 inches (90 mm) |
| Battery Tray: | 158.75 L x 47 W x 23/26 mm H |
| Front Wheels: | 2.2 x 1.02 inches (56 x 26 mm) |
| Rear Wheels: | 2.2 x 1.02 inches (56 x 26 mm) |
| Front Tires: | 4.64 x 1.89 inches (118 x 48 mm) |
|---|---|
| Rear Tires: | 4.64 x 1.89 inches (118 x 48 mm) |
| Hex Size: | 12 mm |
| Speed Control: | XL-5 HV |
| Motor (electric): | Titan® 21T Reverse Rotation |
| Transmission: | 2-speed High/Low, Remote Shifting |
| Gear Pitch: | 32P |
| Differential Type: | 4 Gear, Remote Locking |
| Chassis Structure / Material: | Steel Ladder Frame with Nylon Composite Crossmembers |
| Brake Type: | Electronic “Hill Hold” |
| Drive System: | Shaft-Driven 6WD |
| Steering: | Chassis Mounted Servo |
| Servo: | 2075X Metal Gear |
| Transmitter: | TQi™ 2.4GHz 4-Channel Transmitter |
| Receiver: | 6533 |
| Skill Level: | 1 |
MOTOR SPECS:
| Type: | High-torque brushed motor |
|---|---|
| Size: | 550 |
| Weight: | 390g (13.76oz) |
| Length: | 3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter) |
| Turns: | 21T reverse rotation |
| Voltage: | 16.8V |
ESC SPECS:
| Input Voltage: | 6–7 Cells NiMH, 2–3s LiPo |
|---|---|
| Case Size: | 1.23” W x 2.18” D x 1.04” H |
| Weight: | 2.6oz (74g) |
| Motor Limit: | 21-turns (550 size) |
| On Resistance Forward: | 0.004 Ohms |
| On Resistance Reverse: | 0.004 Ohms |
| Peak Current - Forward: | 100A |
| Peak Current - Reverse: | 100A |
| Braking Current: | 60A |
| Continuous Current: | 18A |
| BEC Voltage: | 6.0 VDC |
| BEC Current: | 1A |
| Power Wire: | 14 Gauge / 5” |
| Input Harness Wire: | 26 Gauge / 14.5” |
| Transistor Type: | MOSFET |
|---|---|
| PWM Frequency: | 1700Hz |
| Low Voltage Detection (LVD): | 2-Stage indicators, switchable (on or off) |
| Thermal Protection: | Thermal Shutdown |
| Profile selection: |
|
| Single-button setup: | Yes, Traxxas EZ-Set® |
| * Patented | |
FEATURES LIST:
-
Officially Licensed Mercedes-Benz G 63 AMG 6x6 Body
- Scale details: chrome grille, chrome running boards, side mirrors, side trim, windshield visor, door handles, wipers, and dual side exhaust
- Authentic decal sheet
- Full Nylon composite wheel wells and floor pans
- Chrome roll bars
- Chrome front and rear skid plates
-
Installed LED Light Kit
- Includes headlights, tail lights, roof lights, and side markers
- Sealed waterproof design
- Color-coded power distribution block for easy and secure connections
- Traxxas LED lighting module
-
- Regulated to provide consistent and reliable power output
- Eliminates overheating, glitching, and other electronics issues
-
Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
-
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
- Two stage low voltage protection (LVD)
-
Motor
- Powerful Titan® 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
-
Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
-

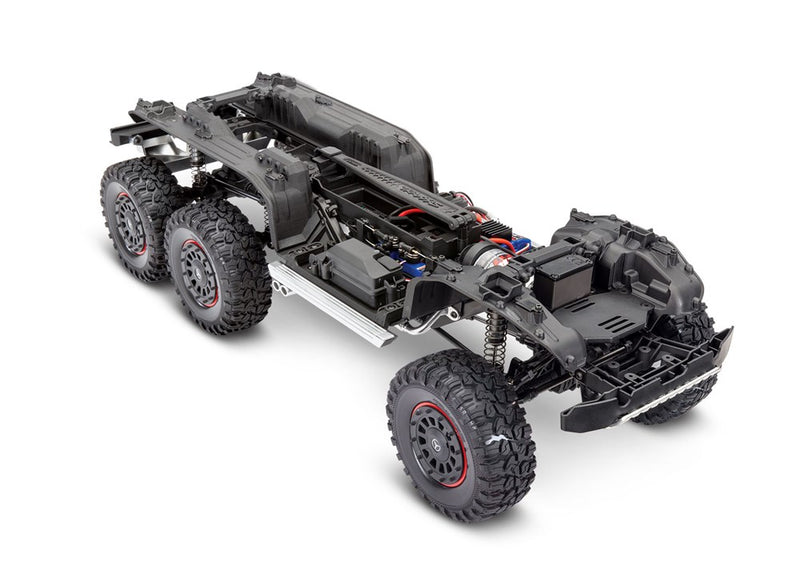

Innovative Chassis Design
- 1.5 mm thick steel frame rails increase torsional rigidity
- Extended wheelbase for added stability on inclines
- Intermediate drive axle to reduce high-centering
- Tough reinforced bumpers with integrated skid plates
- Chrome running boards adjust for width
- Wire routing clips integrated into frame rails
-
Drivetrain
- Full-time shaft driven 6-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
-
Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
-
Aluminum GTS Shocks
- Oil-filled coilover GTS shocks
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
-
Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
-
Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
-

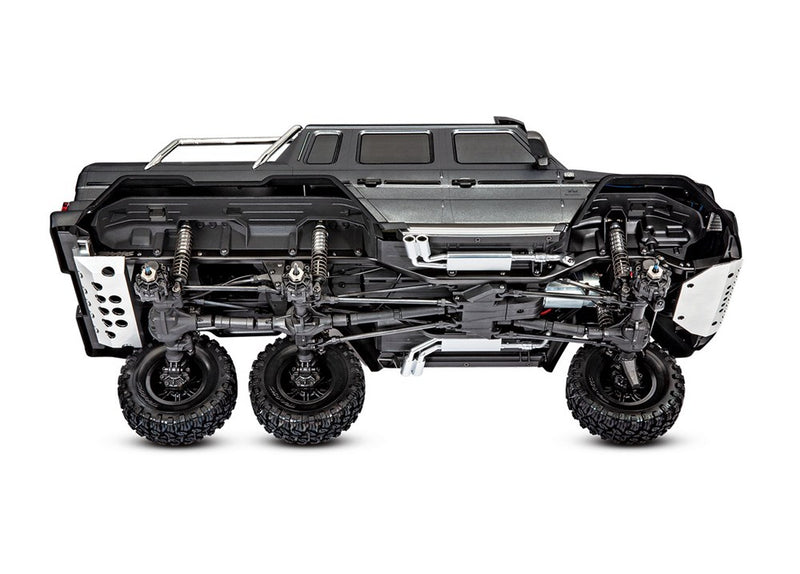

Suspension
- Front — 3 link with panhard
- Rear — Dual triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter lower steel link rods with 4 mm threaded ends
-
Wheels and Tires
- 2.2” Beadlock-style wheels with hub inserts
- Unique 2.2” all-terrain tires with trail-tuned foam inserts
- Trail-tuned S1 rubber compound
- 12 mm steel hex
-
Transmitter
- TQi™ 2.4GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready #6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- High 13ms frame rate and near-zero latency for responsive control
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
WHAT'S IN THE BOX:
- TRX-6, Ready-To-Drive model
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4GHz radio system with cruise control
- High quality maintenance tools
WHAT YOU'LL NEED (SOLD SEPARATELY):
- Batteries: TRX-6 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries
- Charger: Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971)
- Four AA alkaline batteries for the transmitter
MODEL 88096-4
TRX-6 Scale and Trail Crawler with Mercedes-Benz G 63 AMG 6x6 body:
1/10 scale 6WD electric trail truck, Ready-To-Drive, with TQi Traxxas Link
enabled 2.4GHz radio system, XL-5 HV ESC (fwd/rev), and Titan 550 motor.
