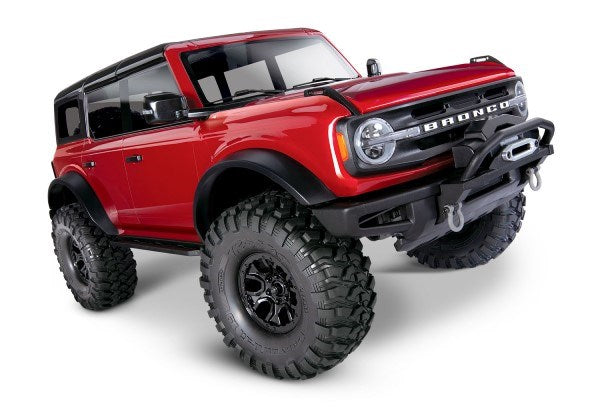

Traxxas 92076-4 - 2021 Ford Bronco: TRX-4 1/10 RTR 4x4 Scale and Trail Crawler
Traxxas 92076-4 - 2021 Ford Bronco: TRX-4 1/10 RTR 4x4 Scale and Trail Crawler
The legend is back. After 25 years, the Bronco has returned as Ford?s top-performing 4X4 and America?s most sought-after SUV. Traxxas has captured the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.
WHAT'S IN THE BOX
- TRX-4, Ready-To-Race Model
- XL-5 HV Waterproof Electronic Speed Control (Installed)
- Titan 21T Reverse Rotation Motor (Installed)
- TQi 2.4GHz Radio System with Cruise Control (Installed)
- High Quality Maintenance Tools
WHAT YOU'LL NEED (SOLD SEPARATELY)
- Battery Pack: NiMH (4?7 cell) or LiPo (2S?3S) Battery equipped with a Traxxas High Current Connector
- Charger: Traxxas EZ-Peak Live Charger (model #2971) recommended
- 4 x AA Alkaline Batteries for the Transmitter
Batteries & Charger are not included, these are the compatible batteries and chargers:
Compatible Lipo Batteries:
- Traxxas 2820X - 2200mAh 2S 7.4V 2200mAh Lipo w/iD Connector
- Traxxas 2823X - 1400mAh 11.1V 3-Cell 25C LiPo Battery
- Traxxas 2842X 5000mAh 7.4v 2-Cell 25C LiPo Battery
- Traxxas 2843X - 5800mAh 7.4v 2-Cell 25C LiPo Battery
- Traxxas 2844R - 5200mAh 7.4v 2-cell 35C LiPo Battery
- Traxxas 2849X - 4000mah 11.1v 3-Cell 25C LiPO Battery w/ID
- Traxxas 2869X - 7600Mah 7.4V 2-Cell 25C Lipo Battery
- Traxxas 2872X - 5000mAh 11.1V 3-Cell 25C LiPo Battery
- Helios 11.1V 3S 5200mAh LiPo with Traxxas Plug
Compatible Nimh Batteries:
- Traxxas 2923X - Battery, Power Cell, 3000mAh (NiMH, 7-C flat, 8.4V)
- Traxxas 2940X - Battery, Series 3 Power Cell, 3300Mah (Nimh, 7-C Flat, 8.4V)
- Traxxas 2950X - Series 4 NiMH 7-Cell 4200mAh Flat w/iD Conn
- Traxxas 2960X - Series 5 NiMH 7-Cell 5000mAh Battery Flat w/iD Conn
Compatible Chargers:
- Traxxas 2970 - Ez-Peak Plus 4-Amp Nimh/Lipo Fast Charger With Id Auto
- Traxxas 2971 - EZ-Peak Live 100W NiMH/LiPo charger (2971A)
- Traxxas 2972 - Charger, EZ-Peak Dual, 100W, NiMH/LiPo with iD Auto Battery Identification
- Traxxas 2973 EZ-Peak Live Multi-Chemistry Battery Charger w/Auto iD (4S/26A/200W)
- Traxxas 2975 - Charger, DC, 4 amp (6 - 7 cell, 7.2 - 8.4 volt, NiMH)
- Traxxas 2981 - EZ-Peak Plus 4s Charger
Completer Packs:
- Traxxas 2983 - 8.4v 3000mah (long) Battery/Charger Completer Pack
- Traxxas 2991 - 2 of 2s 7600mah Battery/Charger Completer Pack, Includes Ez Peak Dual Charger X 1 And 2-Cell 7600 Mah Lipo Batteries X 2
- Traxxas 2992 - 2s Battery/Charger Completer Pack (Includes #2970 Id Charger (1), #2843X 5800Mah 7.4V 2-Cell 25C Lipo Battery (1))
- Traxxas 2994 - 3s 4000mah Battery/charger completer pack (includes #2970 iD charger (1), #2849X 4000mAh 11.1v 3-Cell 25C LiPo Battery (1))
NB: Some batteries may require a battery expansion kit to fit properly.
OVERVIEW
AN OFF-ROAD LEGEND RETURNS
The legend is back. After 25 years, the Bronco has returned as Ford?s top-performing 4X4 and America?s most sought-after SUV. Traxxas has captured the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.
Vehicle Specs:
| Length (overall): | 22.98 inches (584mm) |
|---|---|
| Length (chassis): | 21.59 inches (549mm) |
| Front Track: | 9.78 inches (249mm) |
| Rear Track: | 9.78 inches (249mm) |
| Ground Clearance: | 3.14 inches (80mm) |
| Weight: | 6.42lb (2.91kg) |
| Height: | 9.4 inches (239mm) |
| Wheelbase: | 12.8 inches (324mm) |
| Front Shock Length: | 3.54 inches (90mm) |
| Rear Shock Length: | 3.54 inches (90mm) |
| Front Wheels: | 1.9 x 1.02 inches (49 x 26mm) |
| Rear Wheels: | 1.9 x 1.02 inches (49 x 26mm) |
| Front Tires: | 4.64 x 1.89 inches (118 x 48mm) |
| Rear Tires: | 4.64 x 1.89 inches (118 x 48mm) |
| Approach Angle: | 52? |
| Departure Angle: | 49? |
| Breakover Angle: | 58? |
|---|---|
| Hex Size: | 12mm |
| Speed Control: | XL-5 HV |
| Motor (electric): | 21T Reverse Rotation |
| Transmission: | 2-speed Hi-Lo, Remote Shifting |
| Gear Pitch: | 32P |
| Differential Type: | 4 Gear, Remote Locking |
| Chassis Structure / Material: | Steel Ladder Frame with Nylon Composite Crossmembers |
| Brake Type: | Electronic ?Hill Hold? |
| Drive System: | Shaft Driven 4WD |
| Steering: | Chassis Mounted Servo |
| Servo: | 2075X Metal Gear |
| Transmitter: | TQi? 2.4 GHz 4-Channel Transmitter |
| Receiver: | 6533 |
| Skill Level: | 1 |
| Battery Tray: | 158.75 L x 47 W x 23/26mm H |
Motor Specs:
| Type: | High-torque brushed motor |
|---|---|
| Size: | 550 |
| Weight: | 390g (13.76oz) |
| Length: | 3.071? (78mm) overall length, 2.25? (57mm) can length, 1.532? (38.9mm diameter) |
| Turns: | 21T reverse rotation |
| Voltage: | 16.8V |
ESC Specs:
| Input Voltage: | 6?7 Cells NiMH, 2?3s LiPo |
|---|---|
| Case Size: | 1.23? W x 2.18? D x 1.04? H |
| Weight: | 2.6oz (74g) |
| Motor Limit: | 21-turns (550 size) |
| On Resistance Forward: | 0.004 Ohms |
| On Resistance Reverse: | 0.004 Ohms |
| Peak Current - Forward: | 100A |
| Peak Current - Reverse: | 100A |
| Braking Current: | 60A |
| Continuous Current: | 18A |
| BEC Voltage: | 6.0 VDC |
| BEC Current: | 1A |
| Power Wire: | 14 Gauge / 5? |
| Input Harness Wire: | 26 Gauge / 14.5? |
| Transistor Type: | MOSFET |
|---|---|
| PWM Frequency: | 1700Hz |
| Low Voltage Detection (LVD): | 2-Stage indicators, switchable (on or off) |
| Thermal Protection: | Thermal Shutdown |
| Profile selection: |
|
| Single-button setup: | Yes, Traxxas EZ-Set? |
| * Patented | |
Features List:
-

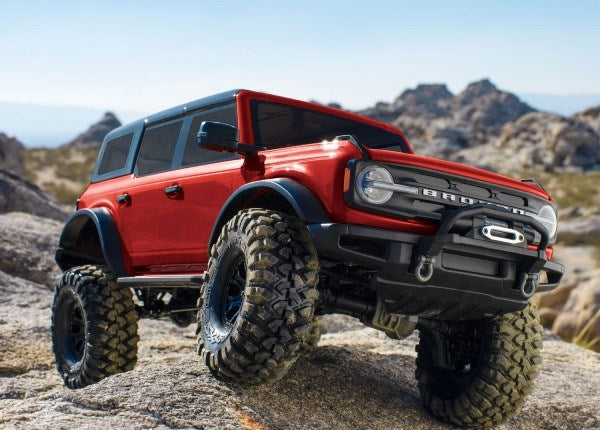

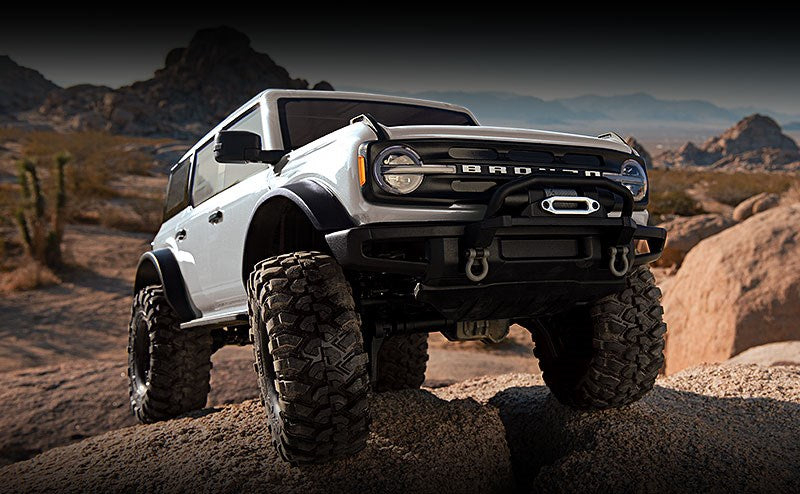

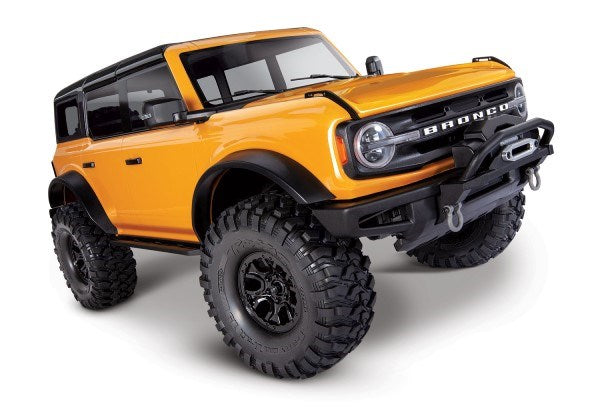

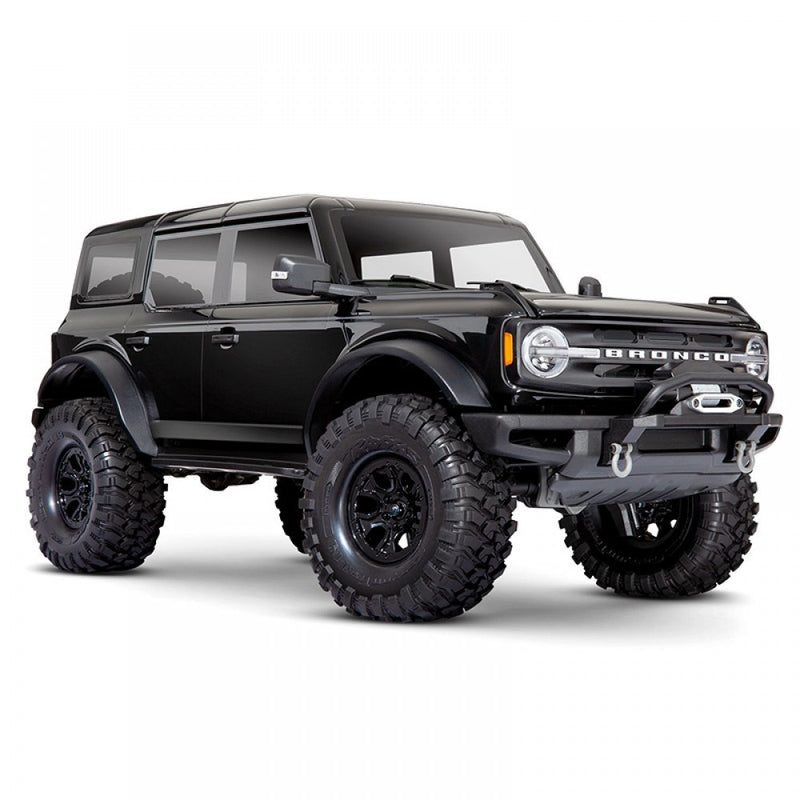

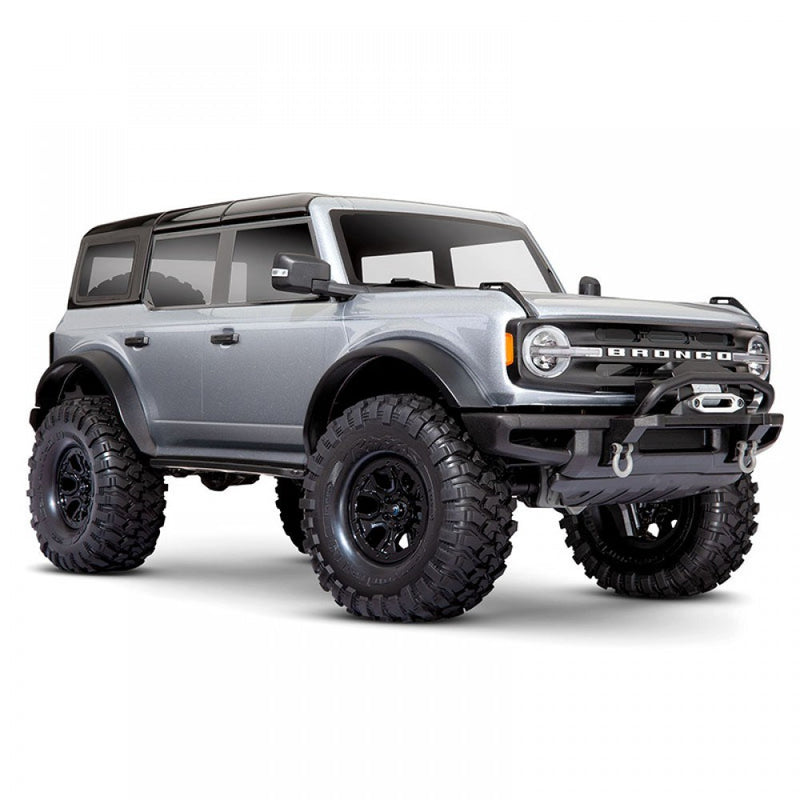

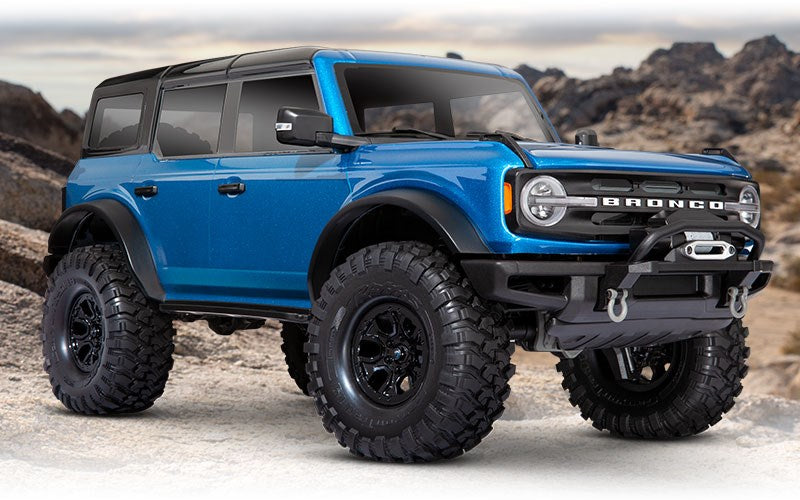

Officially Licensed 2021 Ford? Bronco Body
- Two-tone paint with black roof and clear windows
- LED-ready headlights and tail lights with multi-function capability
- Scale details
-
- Black molded grille with white Bronco logo
- Replica hood cowl w/ wipers and folding mirrors
- Replica spare tire mount
- Replica door handles
- Tough PVC fender flares, wheel wells, and floor pans
- Front and rear Bronco bumpers with skid plate and replica winch
-
Clipless Body mounting
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
-
- Body details mount directly to internal frame
-
Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
-
Five drive profiles
- Sport Mode ? forward / brake / reverse
- Race Mode ? forward / brake / no reverse
- Training Mode? ? 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode ? forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode ? forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set? one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6?7 cell NiMH (7.2?8.4V) and 2?3s LiPo (7.4?11.1V)
- Two stage low voltage protection (LVD)
-
Motor
- Powerful Titan? 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
-
Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
-

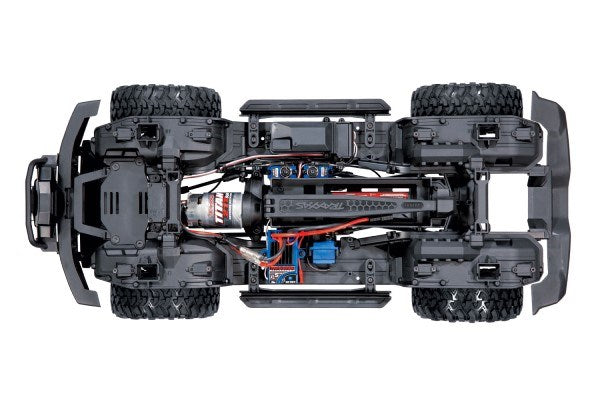

Rigid Steel Frame
- 1.5mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
-
Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
-
Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
-
Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
-
Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45? steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
-

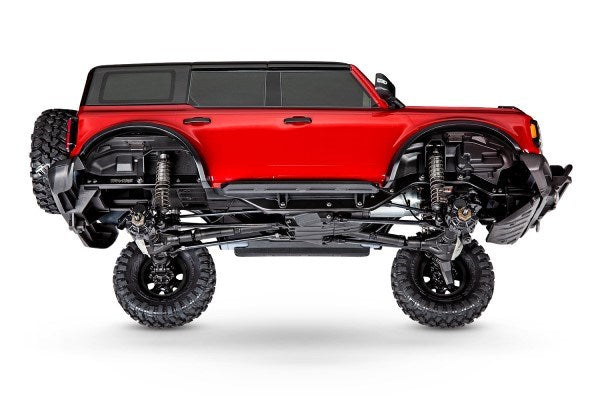

Suspension
- Front ? 3 link with panhard
- Rear ? Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5mm diameter steel link rods with 4mm threaded ends
-
Aluminum GTS Shocks
- Oil-filled coilover GTS shocks
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
-
Wheels and Tires
- Replica black 2021 Bronco wheels
- Pre-mounted 1.9? Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12mm steel hex
-
Transmitter
- TQi? 2.4GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready #6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
MODEL 92076-4 INFORMATION
1/10 Scale 4X4 Trail Truck with Ford Bronco Body, Fully-Assembled, Waterproof Electronics, Ready-To-Drive, with TQi 2.4GHz 4-Channel Radio System, XL-5 HV Speed Control, Hi/Low Transmission, Remote Locking Differentials, and Painted Body
